E7D06

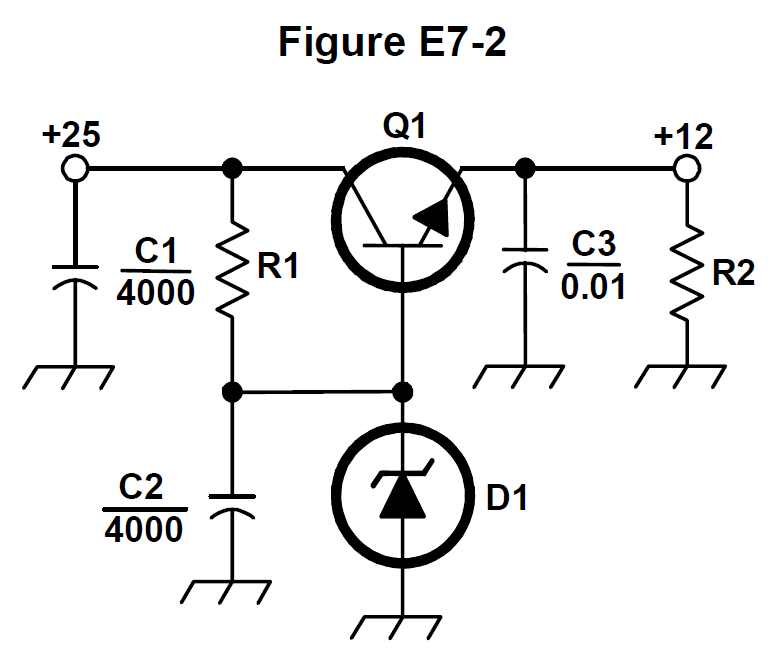

What is the purpose of Q1 in the circuit shown in Figure E7-2?

1. AIt provides negative feedback to improve regulation
2. BIt provides a constant load for the voltage source
3. CIt controls the current to keep the output voltage constant
4. DIt provides regulation by switching or “chopping” the input DC voltage

Pick an answer to check it.
