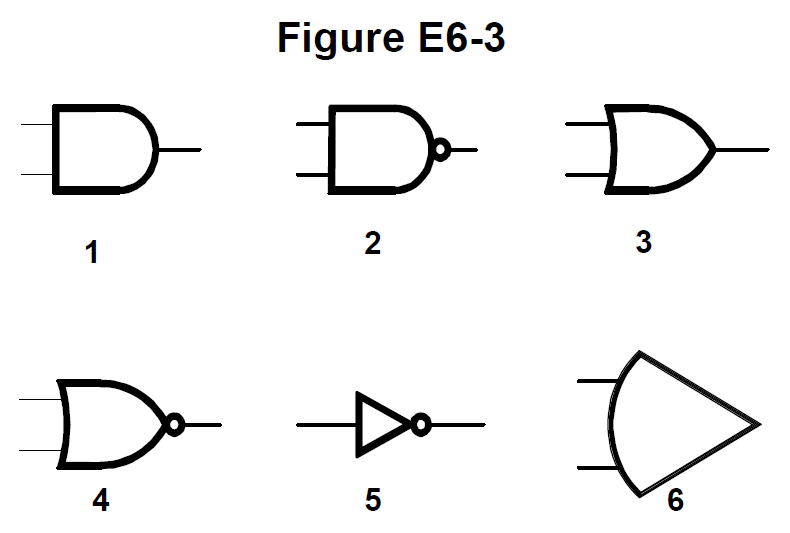

In Figure E6-3, which is the schematic symbol for a NOR gate?

Answer: D. 4

Symbol 4 is the OR gate shape (curved back, pointed front) with a small circle on the output. OR plus inversion is NOR.

Tip: NOR = OR with a bubble.
