G7A13

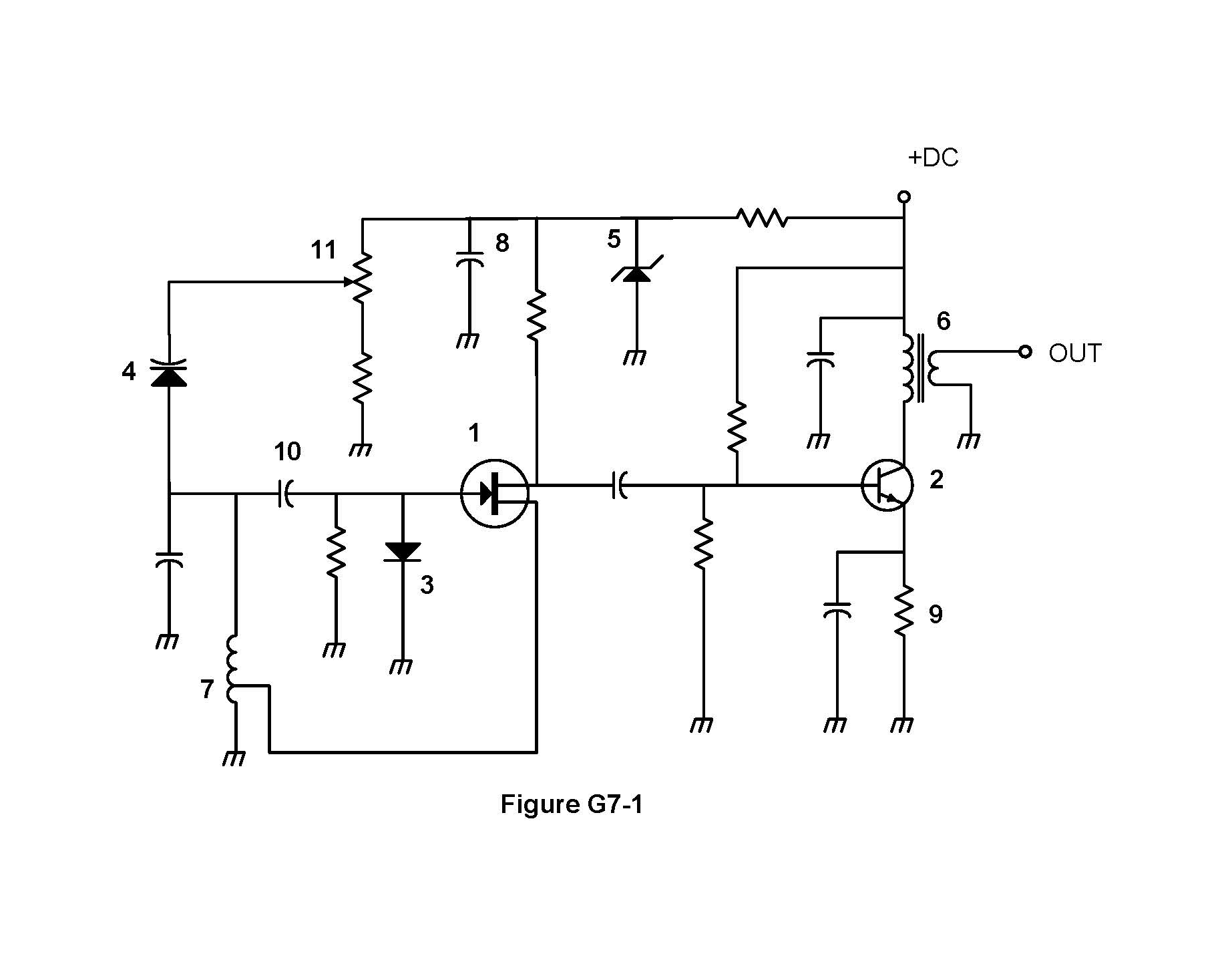

Which symbol in Figure G7-1 represents a tapped inductor?
Pick an answer to check it.
Answer: A. Symbol 7
Symbol 7 is a coil with a connection partway along it, which is a tapped inductor. Symbol 6 is a transformer.
Tip: Tap in the middle of the coil = symbol 7.
